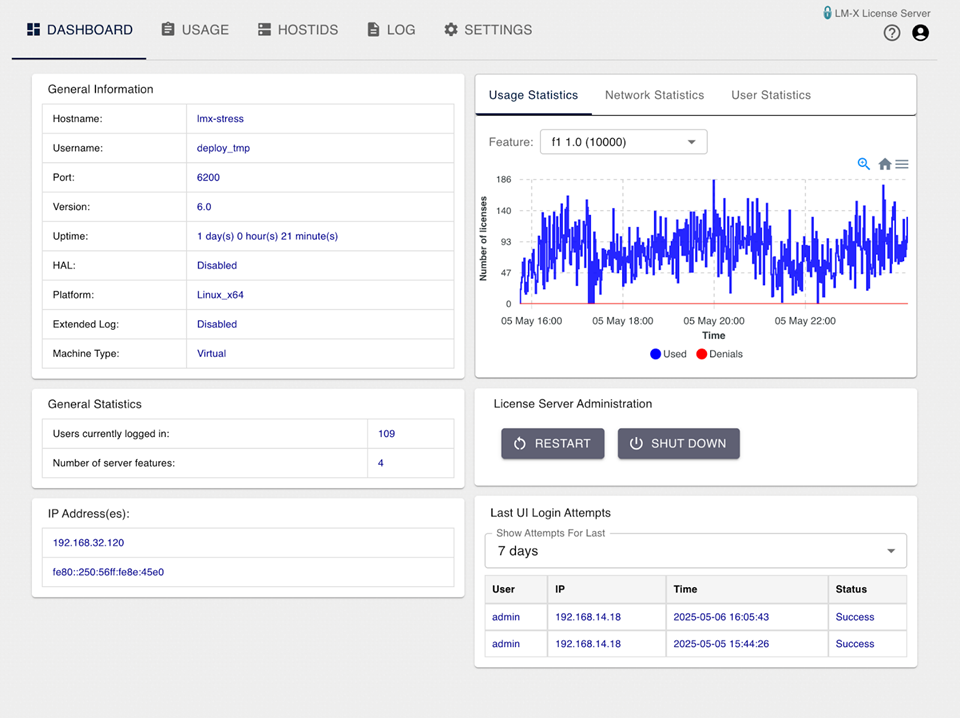

The LM-X License Server UI's Dashboard lets you see information and statistics for your LM-X license server and allows for restarting or shutting down the server.
The individual areas of the Dashboard are described below.
Server information
General information about the LM-X license server is listed along the left side of the Dashboard.
General Information | License server details, such as the hostname, LM-X client port for accessing the LM-X server, the LM-X version the server is running, whether HAL and extended logging are enabled, etc. |
General Statistics | General server statistics, including the number of users currently logged into the LM-X license server and the number of features that are on the server |
IP Addresses | The IP address(es) available to be used by the LM-X client to access the LM-X license server |
Statistics graphs
The statistics graphs illustrate your LM-X license server’s usage, network and user statistics.
| Usage Statistics | Usage and denials history (for the past 30 days, beginning at the startup of the license server) for a selected feature on the server |
| Network Statistics | Data received/sent by the server |
| User Statistics | The server's number of users and connections |
Simply click the tab for the statistics graph you want to see.
When working with statistics graphs:
- You can zoom in on details in the graph by using your mouse scroll wheel or by window-selecting (clicking and dragging) the area you want to zoom in on. (Zooming in shows greater detail over a shorter period of time.) To return the zoom level to its default, click the Reset Zoom icon, located above the graph.
- You can choose to download the statistics to an SVG, PNG or CSV file by clicking the hamburger icon, located above the graph.
- You can control the visibility of details shown in the graph by clicking the legend items beneath the graph. For example, the Usage Statistics graph includes Used and Denials labels beneath the graph. To toggle between hiding and showing the denials details in the graph, simply click on the Denials label. When visibility is toggled off, the label is grayed out.
- For the Usage Statistics graph, you can hover over the graph to see Used and Denials statistics for the specific point in time that you are hovering over. (Note that if details are hidden, as described above, those details will also be hidden when hovering over the graph.)
License Server Administration
The License Server Administration area, visible only for LM-X administrators, lets you restart or shut down the license server.
Last UI Login Attempts
The Last UI Login Attempts area, visible only for LM-X administrators, lists details about login attempts over the selected time period, including the user, IP address, time of the attempt, and whether the attempt succeeded or failed. You can adjust the time period shown by using the options under the “Show Attempts For Last” pick list.
